14.3.3 Helical Motion in Magnetic Field

What happens if a charged particle is moving at an angle (neither parallel nor perpendicular) to the magnetic field B?

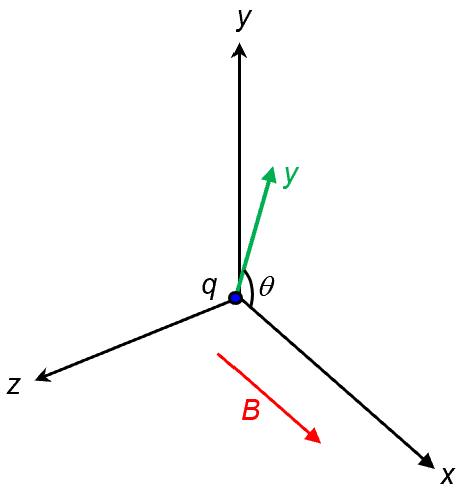

For example, in the diagram above, we have a uniform B-field directed in the +x direction. A positive charge q is moving at velocity v in the xy plane, making an angle q  with the x-axis.

The analysis becomes much easier if we make an astute decision to resolve the velocity into

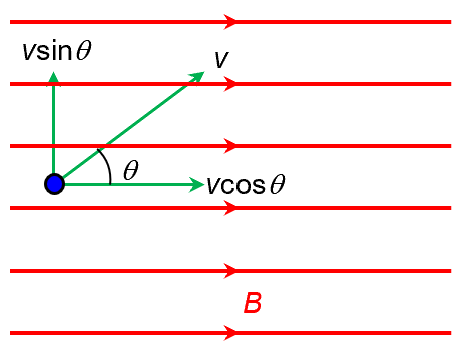

  • the component parallel to B, \displaystyle {{v}_{\parallel }}=v\cos \theta and
  • the component perpendicular to B, \displaystyle {{v}_{\bot }}=v\sin \theta .

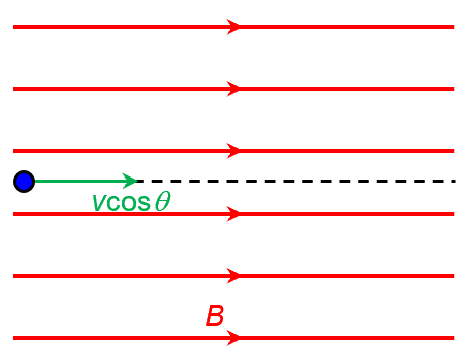

If the charge had only velocity \displaystyle \displaystyle {{v}_{\parallel }}, it would have experienced zero magnetic force, since its velocity is completely parallel to the magnetic field. This charge would continue travelling forward (in the +x direction) at a constant velocity.

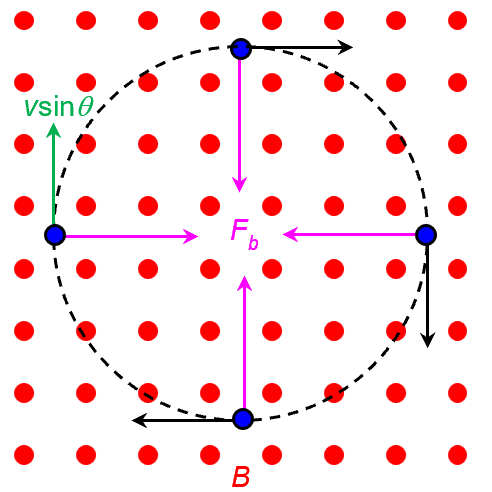

If the charge had only velocity \displaystyle {{v}_{\bot }}, it would have experienced the centripetal magnetic force \displaystyle {{F}_{b}}=Bq{{v}_{\bot }}, since its velocity is perpendicular to the magnetic field. Its motion would have been circular motion of radius \displaystyle r=\frac{{m{{v}_{\bot }}}}{{Bq}} in the y-z plane.

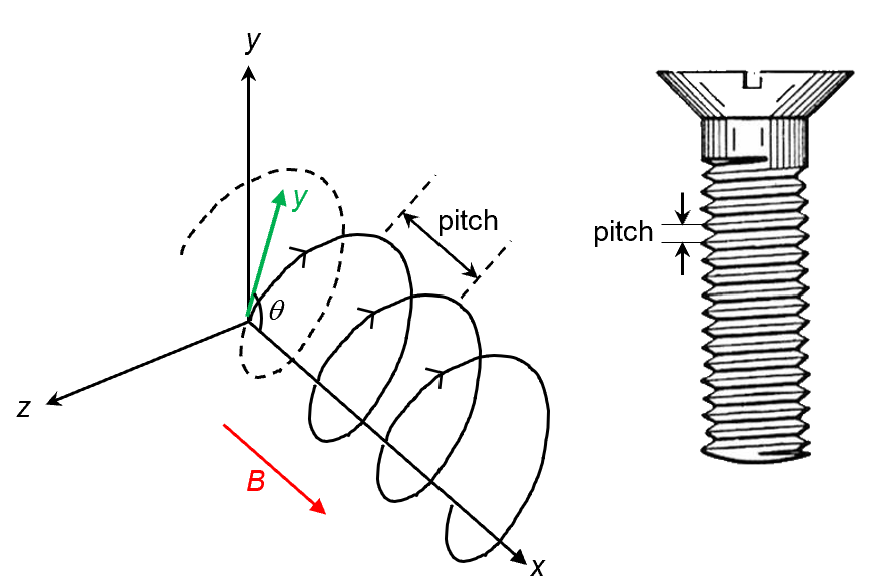

Since the charge had both \displaystyle \displaystyle {{v}_{\parallel }} and \displaystyle {{v}_{\bot }}, we have to superpose the two motions together. What we get is a circular motion of radius \displaystyle r=\frac{{m{{v}_{\bot }}}}{{Bq}} that moves forward at a constant speed \displaystyle {{v}_{\parallel }}. The resultant motion is a helical path, like a screw with a pitch of \displaystyle v\cos \theta \times \frac{{2\pi m}}{{Bq}}.
